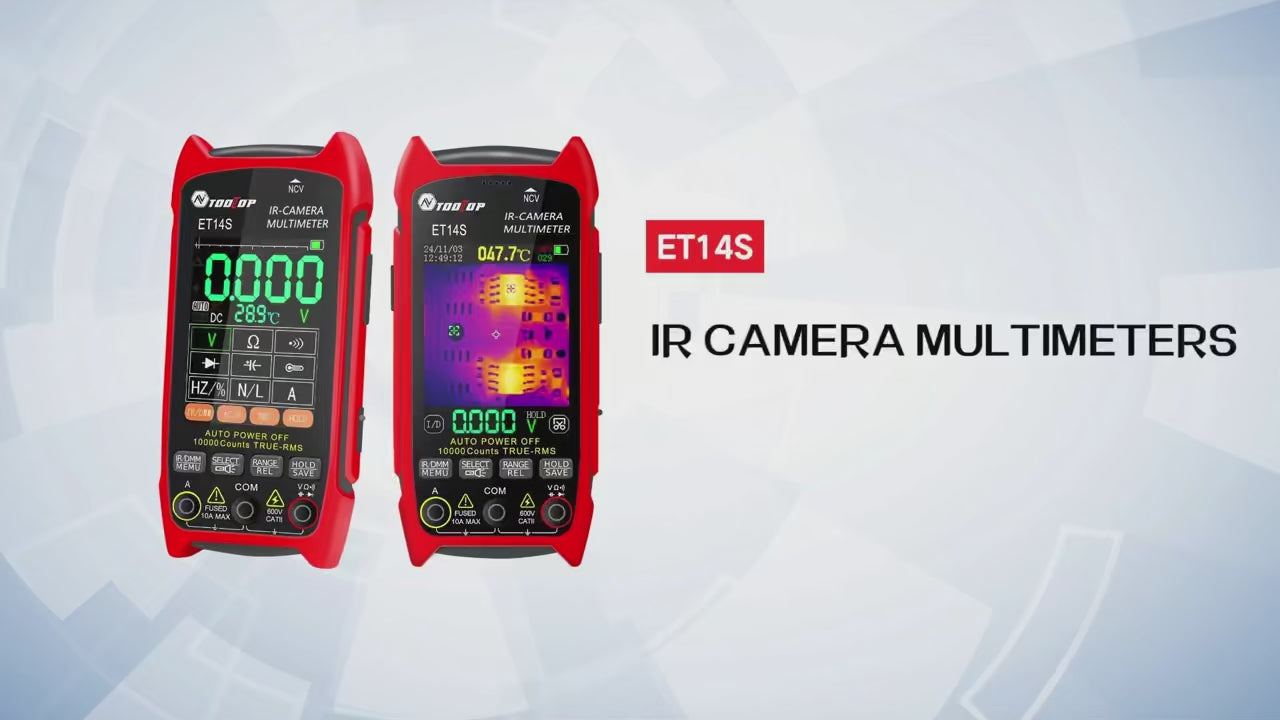

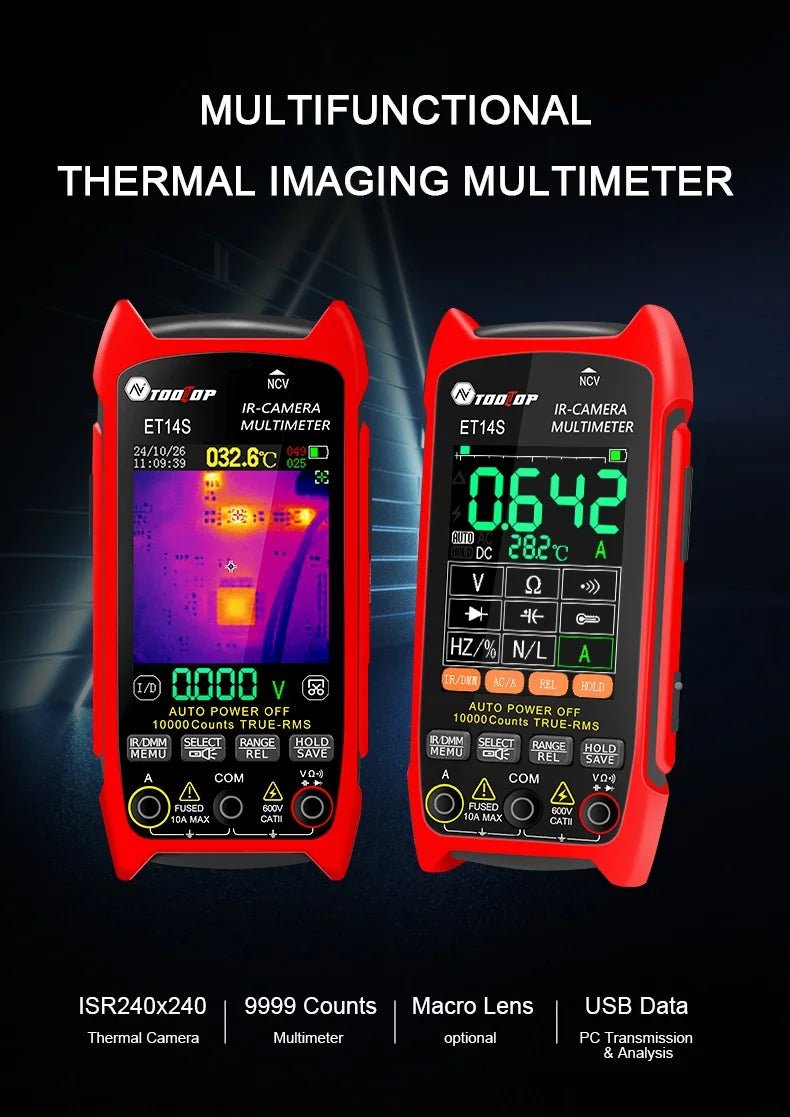

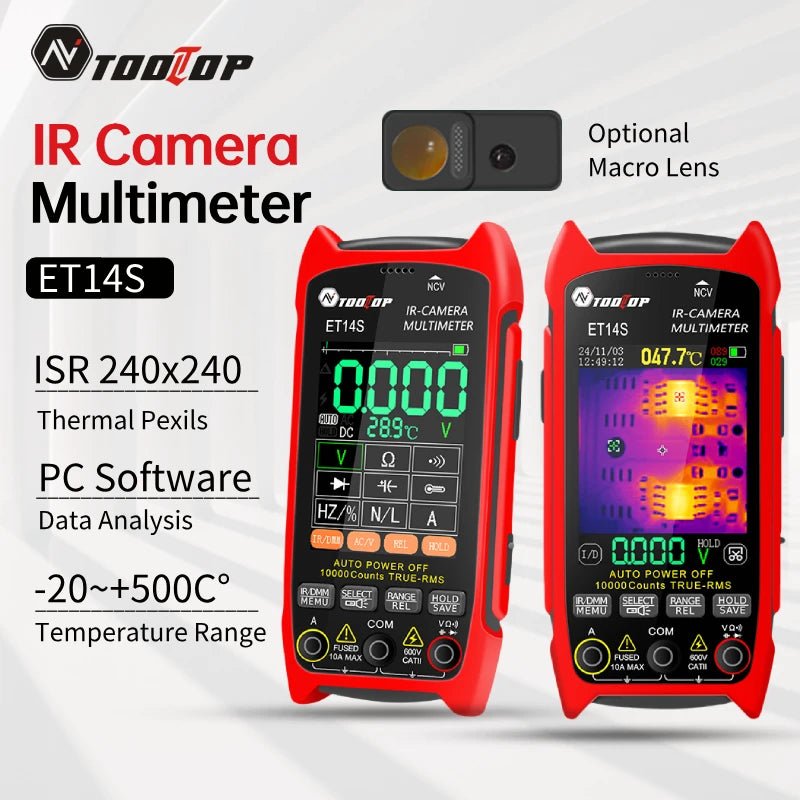

The TOD 10P™ S14 is designed for both novices and professionals. Featuring a built-in FLIR (Forward Looking Infrared) camera, it captures fine heat differences, allowing you to visualize temperature variations in real-time. Everything that works generates heat—this tool helps you understand, troubleshoot, and optimize it.
A vital asset for safety, it quickly scans wire bundles, power strips, and overloaded adapters, preventing fire hazards before they become dangerous. This device provides unparalleled diagnostic accuracy, allowing you to see issues before they escalate.
Perfect for: Property investors, home and vehicle owners, managers, hobbyists, mechanics, electricians, and builders.

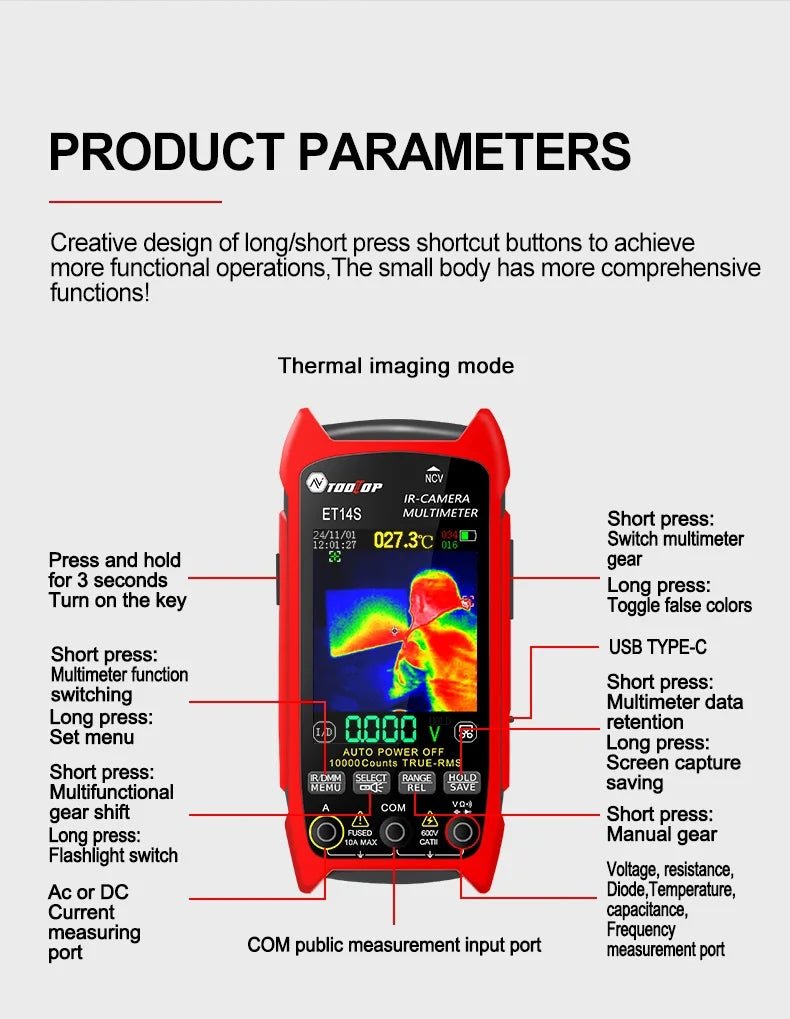

Features:

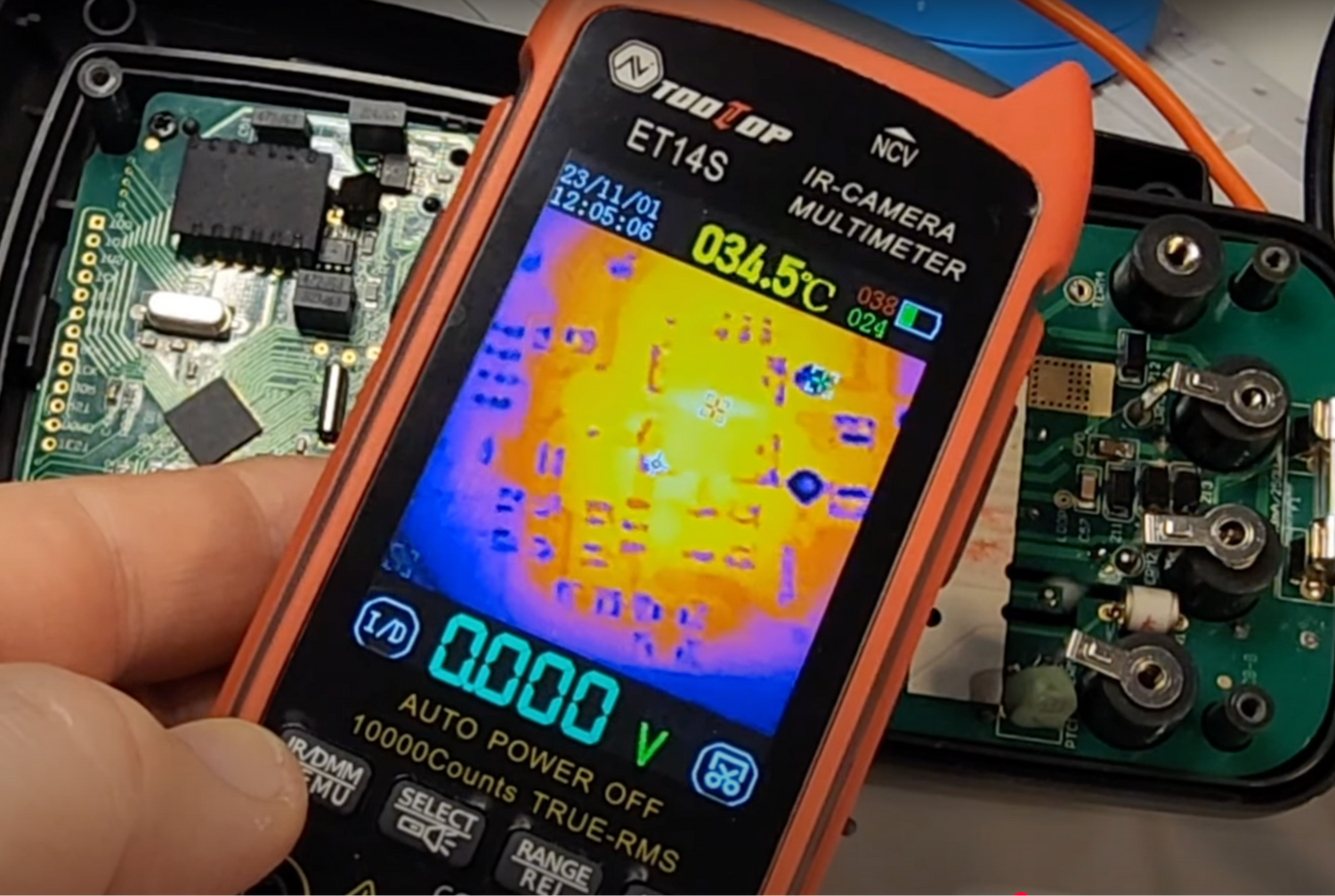

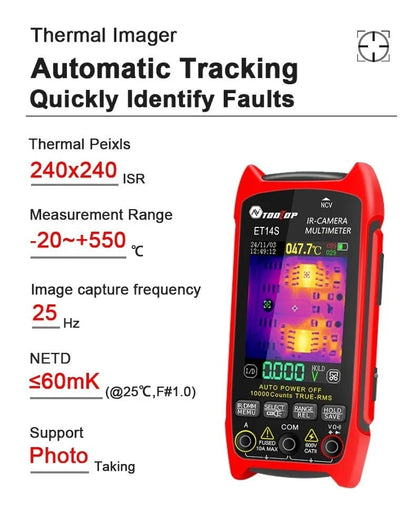

- High-Resolution Thermal Imaging: Detect overheating wires, failing fuses, and faulty insulation with 196 x 196 thermal sensor upscaled to ISR 240x240 resolution and a 25Hz refresh rate.

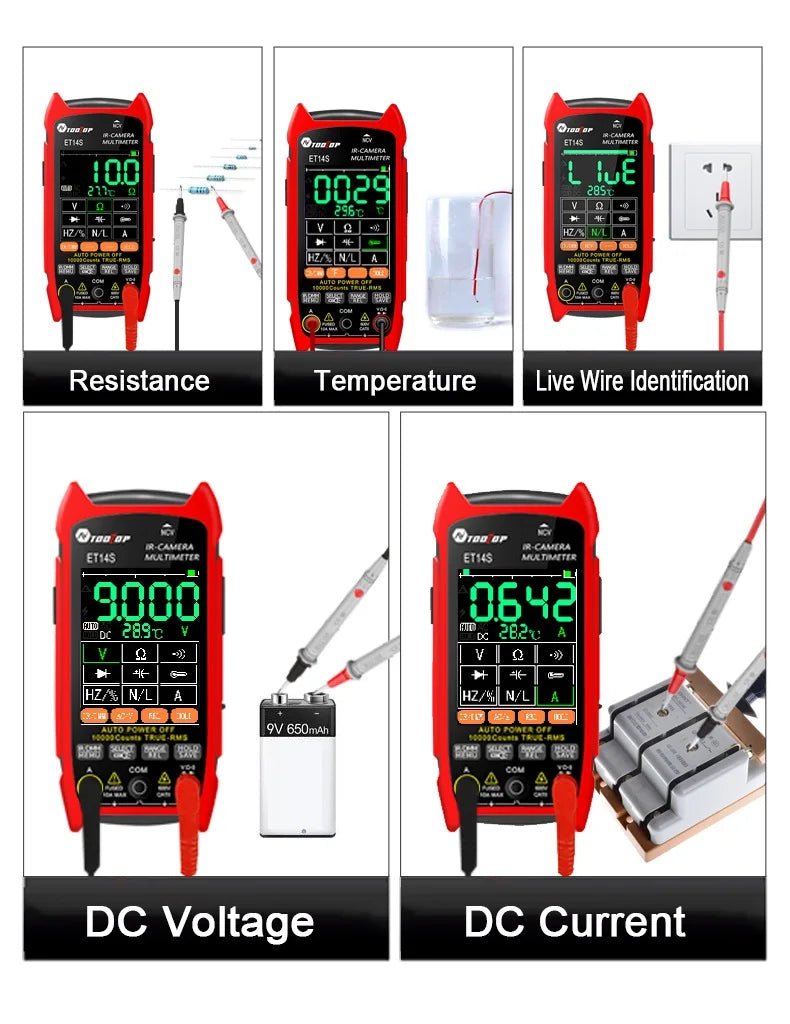

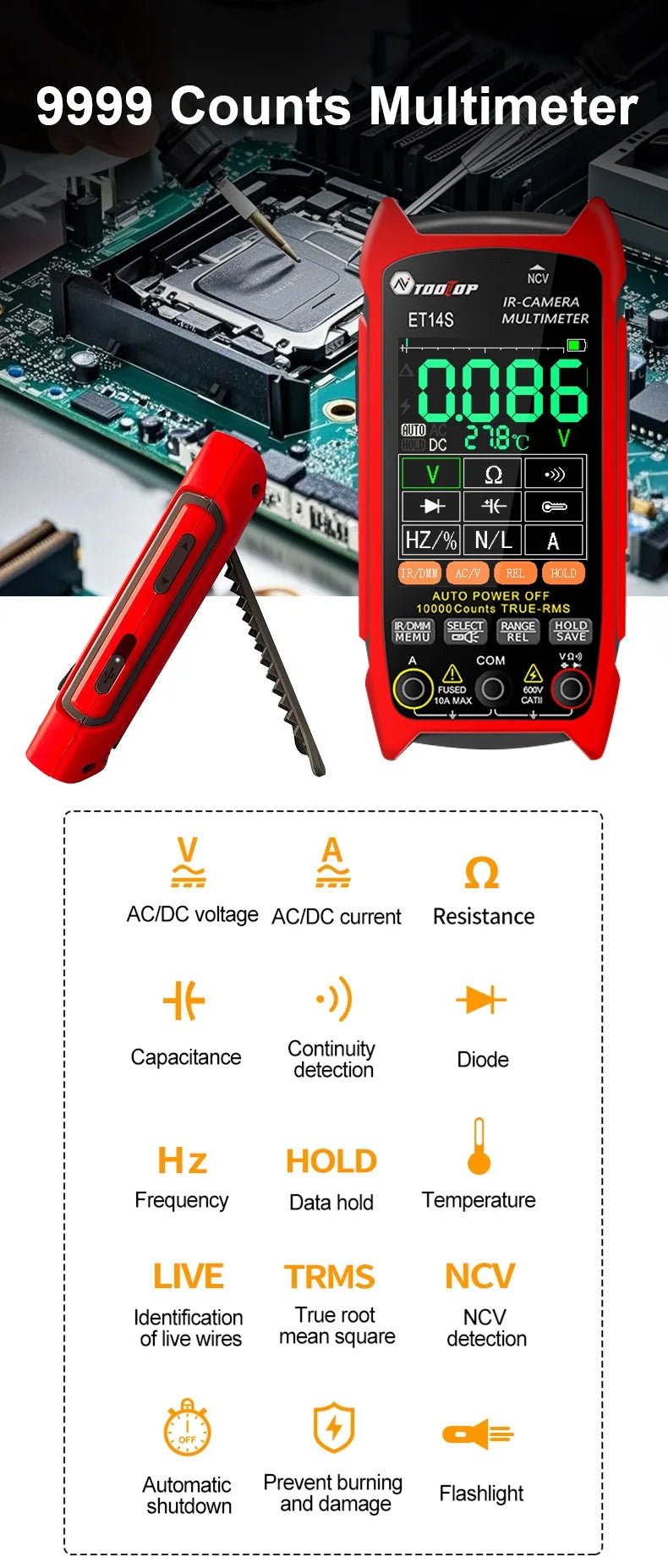

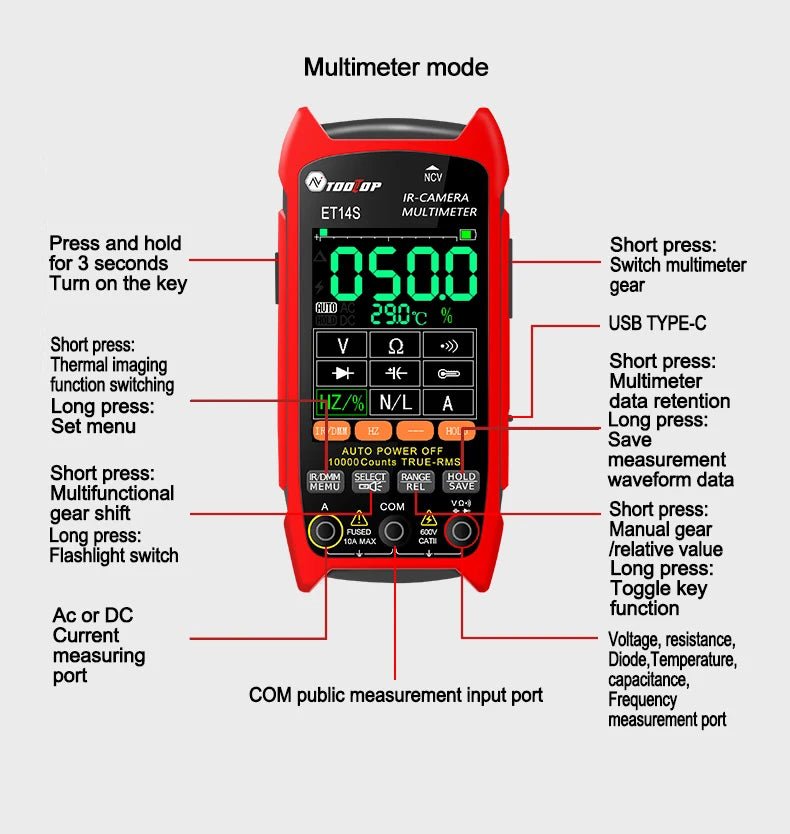

- Advanced Multimeter Functions: Accurately measure voltage, current, resistance, capacitance, diode, frequency, NCV, and temperature with automatic and manual selection.
- Waveform Visualization: Graph voltage, current, and frequency changes over time, making it ideal for diagnosing intermittent faults.

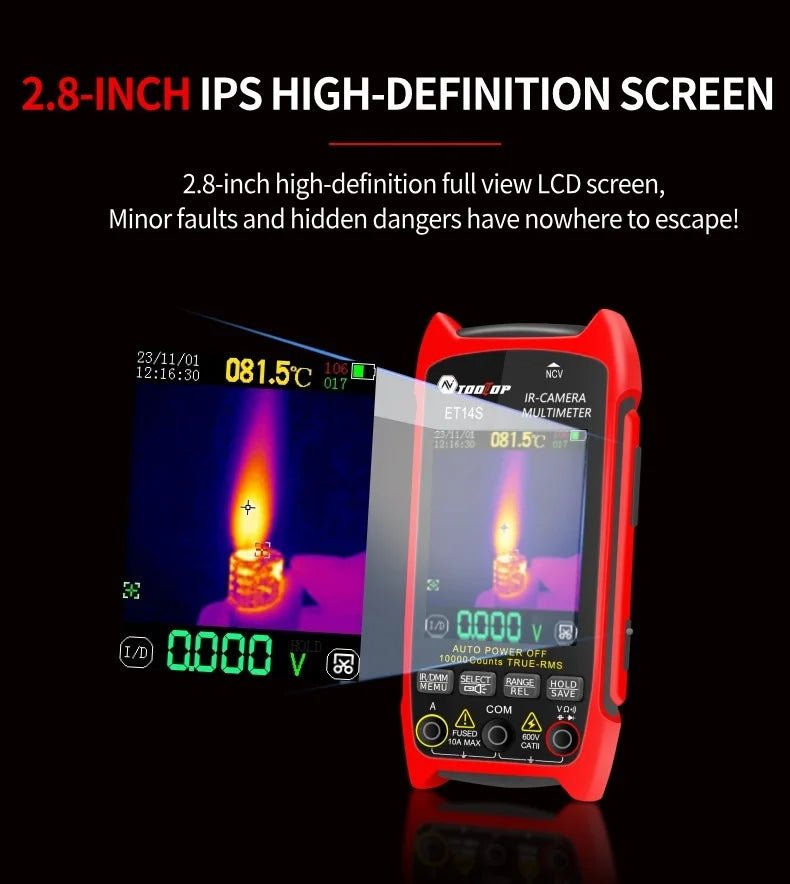

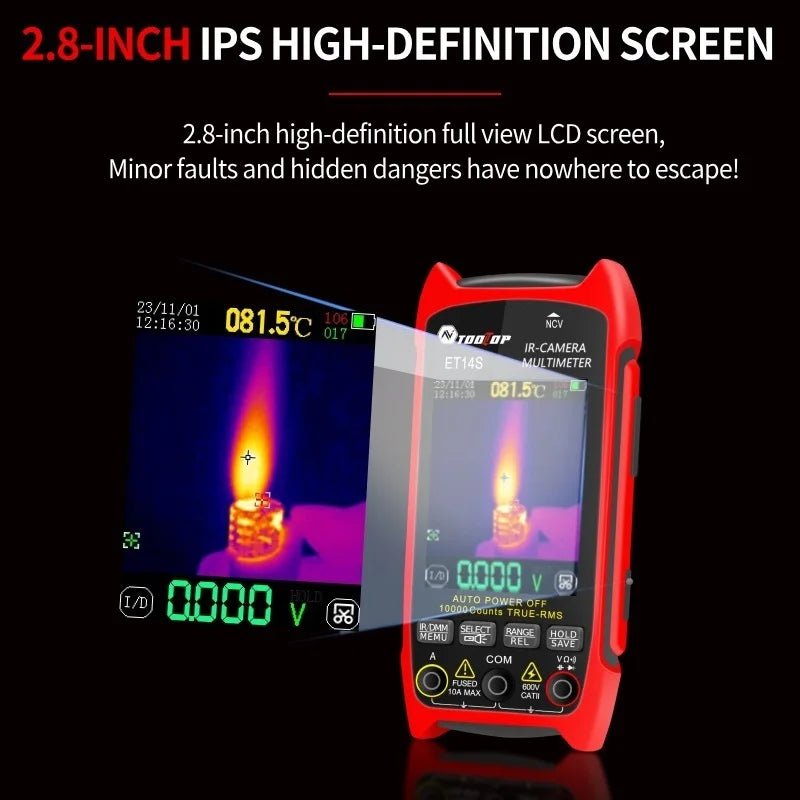

- Clear, Bright Display with Rich Color Options: Features a 2.8-inch, 240 × 320 resolution screen with a variety of color palettes for optimal viewing.

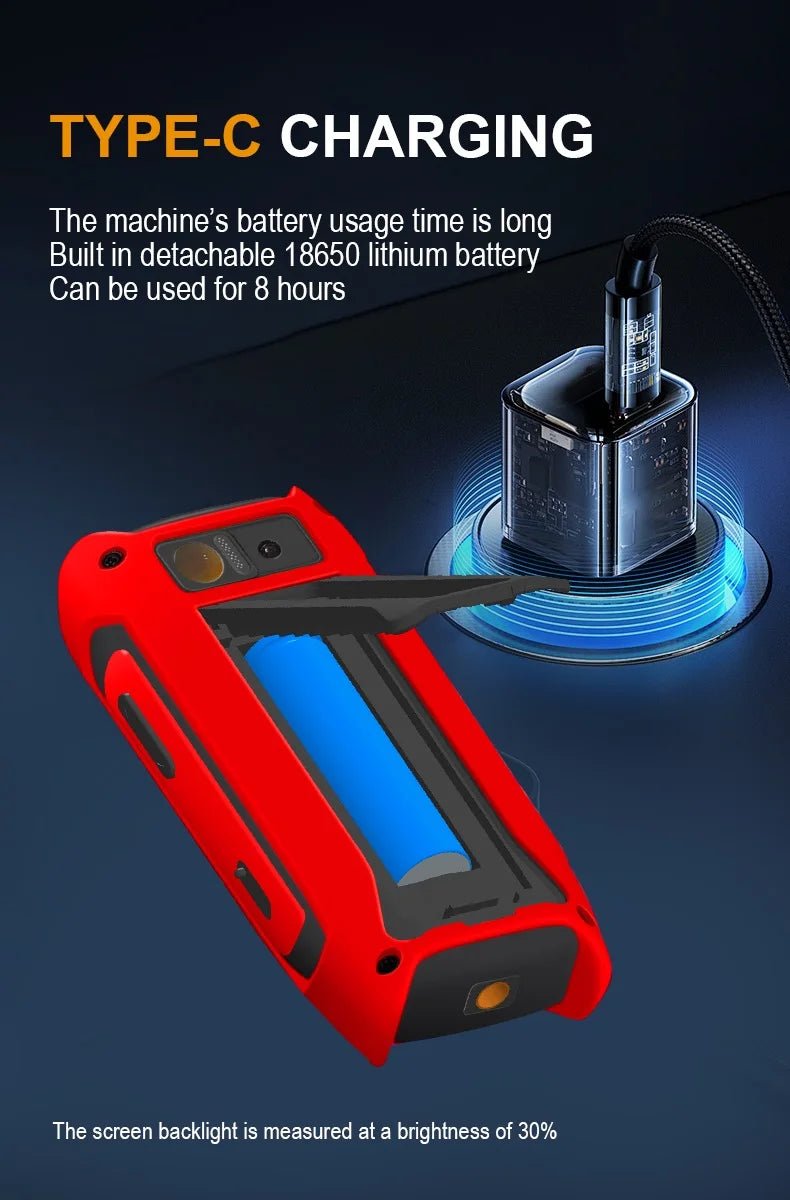

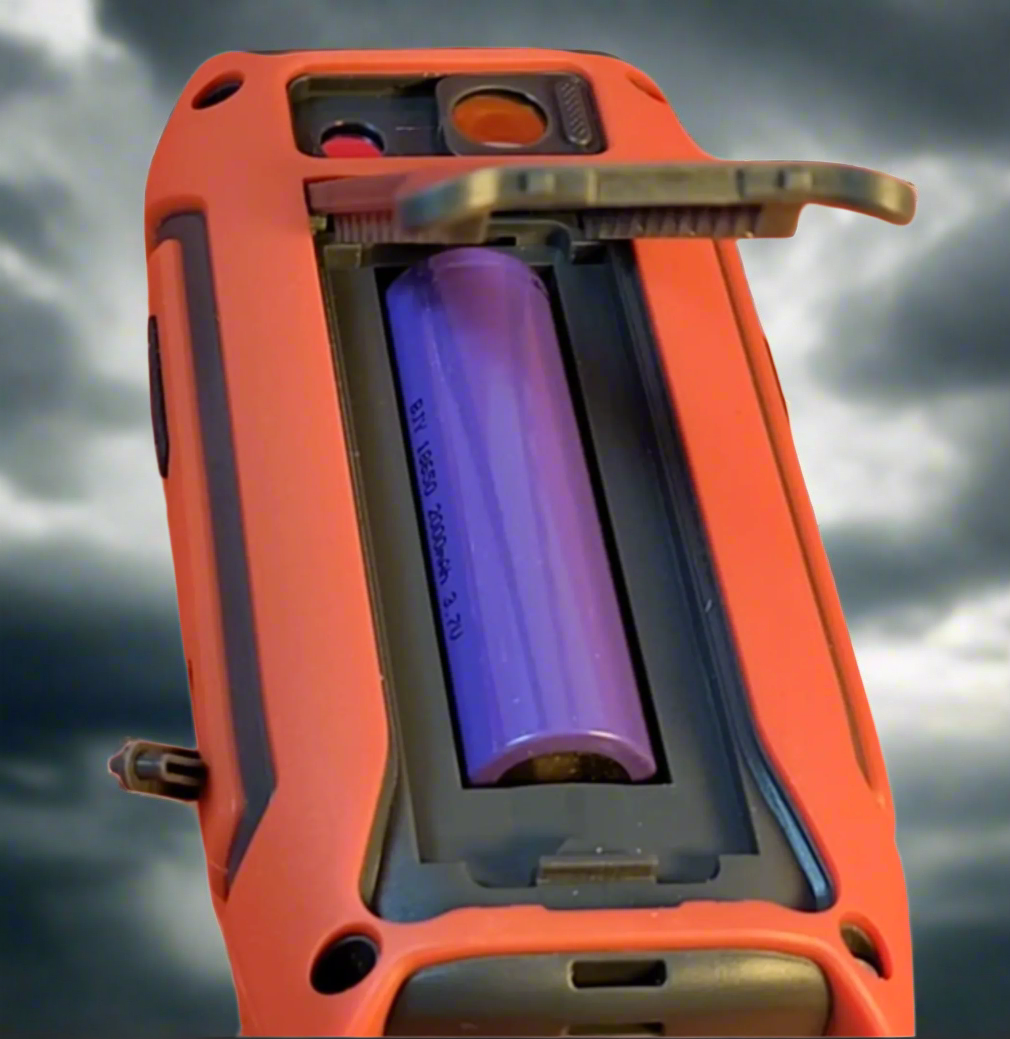

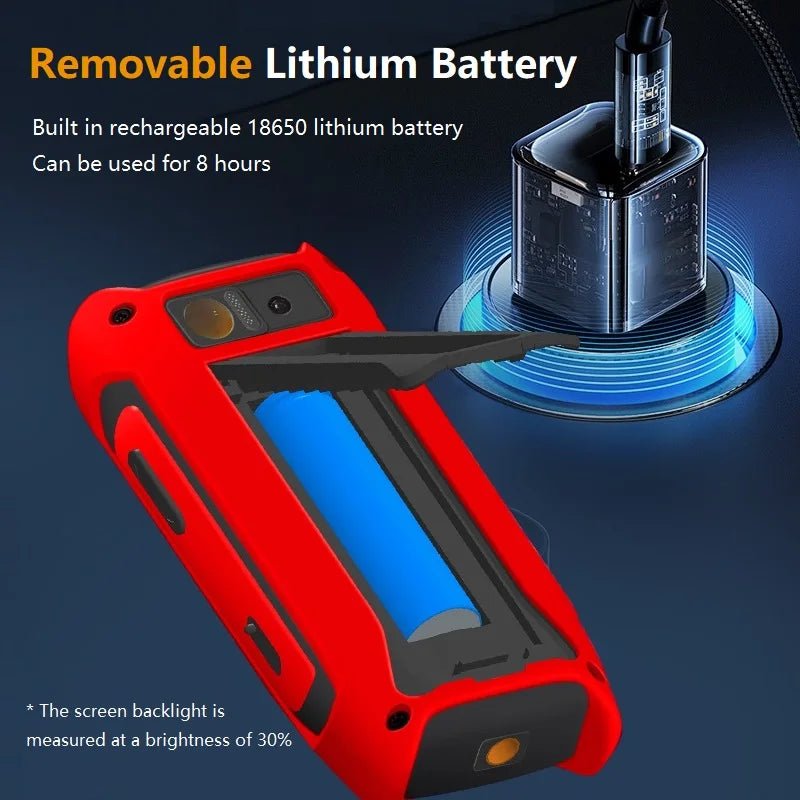

- Easy-to-Replace Battery and Fuse: Powered by a detachable 18650 lithium battery with up to 8 hours of runtime and convenient USB-C charging. The fuse is easy to access behind the battery compartment, ensuring quick replacements.

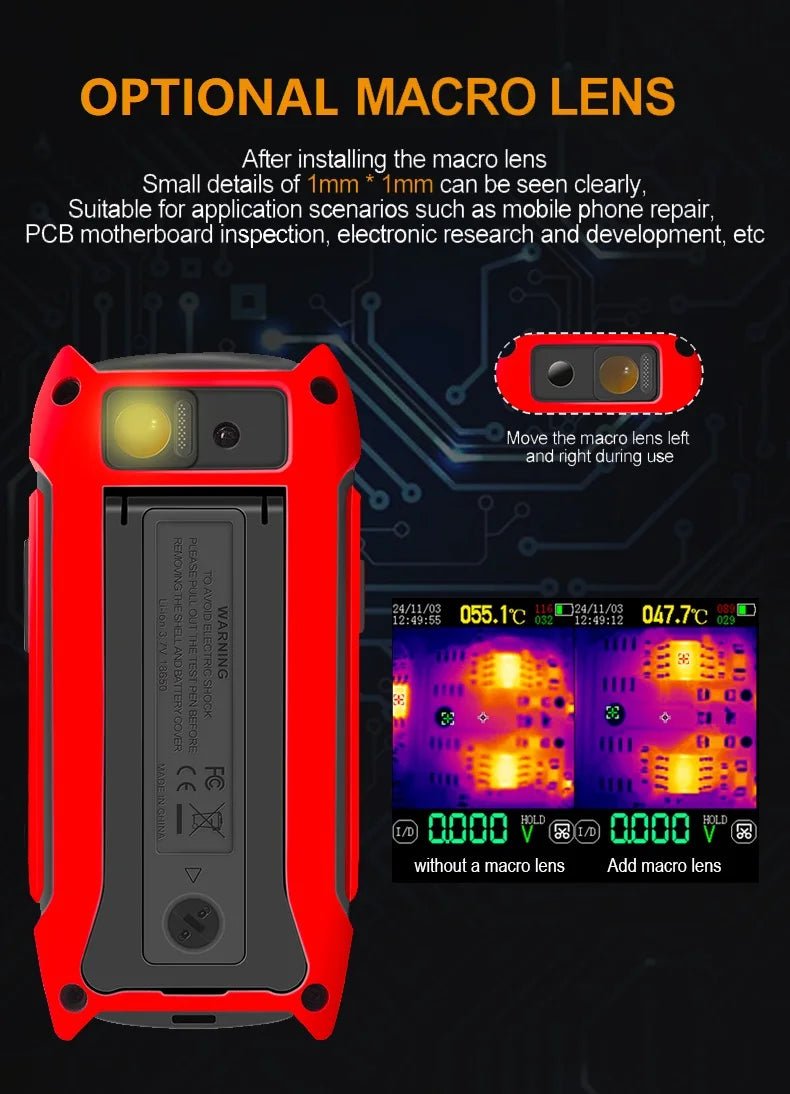

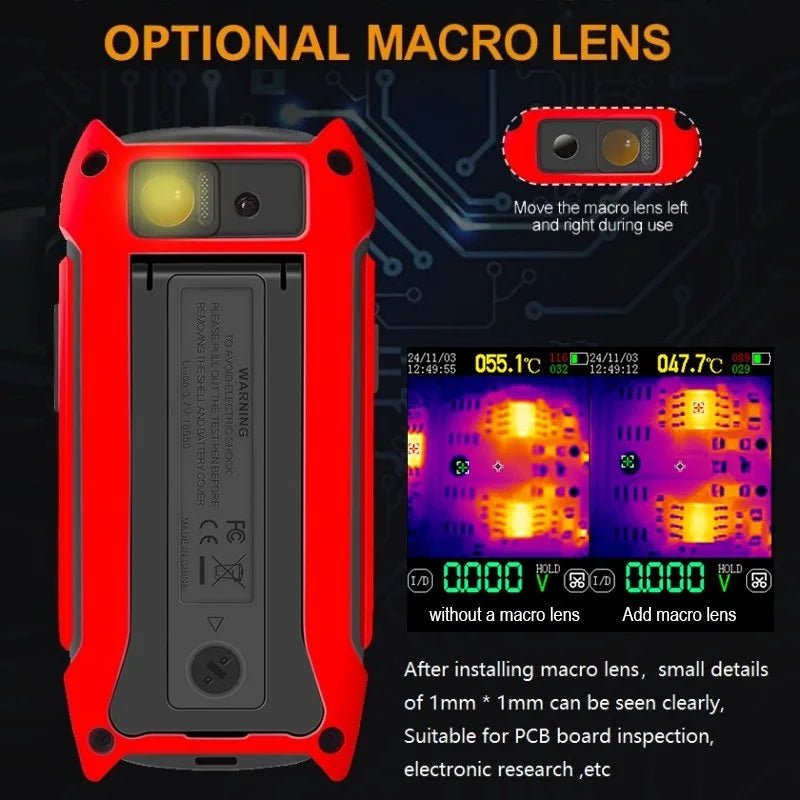

- Optional Macro Lens for Extreme Close-Ups: Captures fine details as small as 1mm x 1mm, perfect for smartphone repairs and PCB inspections.
-

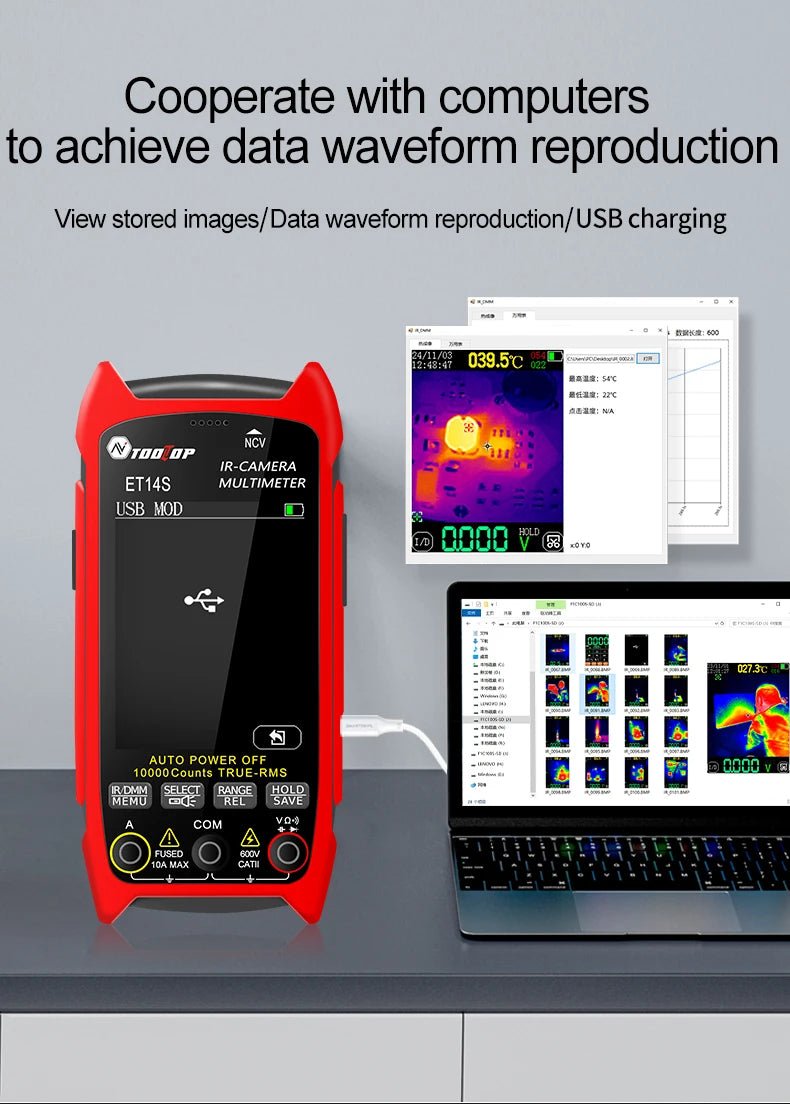

PC Software Support: Easily transfer thermal images and multimeter data to a PC for detailed analysis and report creation.
FAQ:
Q: How does the automatic voltage detection work?
A: When you insert the probes into a socket, the TOD 10P™ S14 automatically detects voltage and switches to the correct mode, preventing accidental fuse blowouts.
Q: Can it detect live electricity without making contact?
A: Yes! It features Non-Contact Voltage (NCV) detection, so you can safely identify live wires without touching them.
Q: How does it compare to regular multimeters?
A: A standard multimeter only provides numerical readings. The TOD 10P™ S14 combines thermal imaging with professional-grade measurement functions, letting you see issues immediately instead of guessing.
Q: How long does the battery last?
A: The detachable 18650 lithium battery provides up to 8 hours of continuous use. Unlike many other meters, the battery is easily replaceable, so you’ll never be stuck without power.
Q: Is the thermal camera useful for non-electrical work?

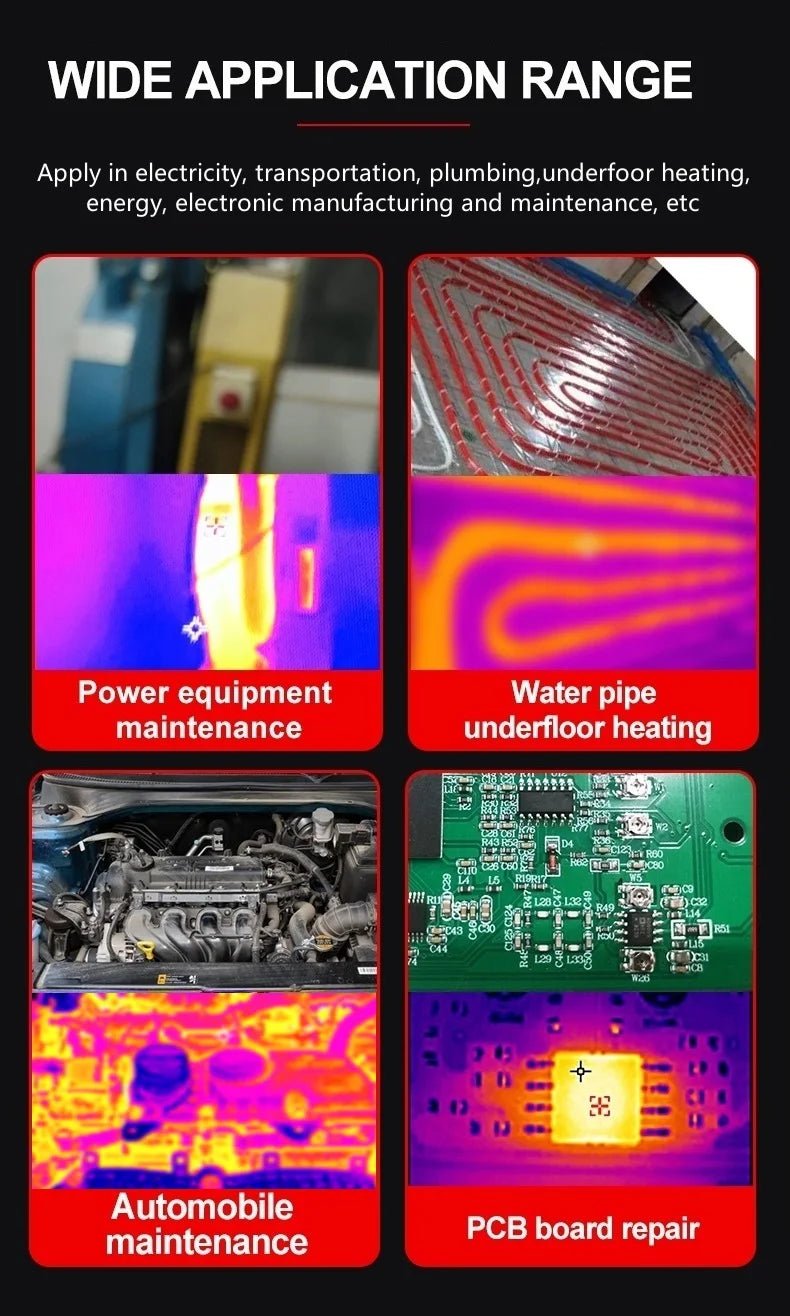

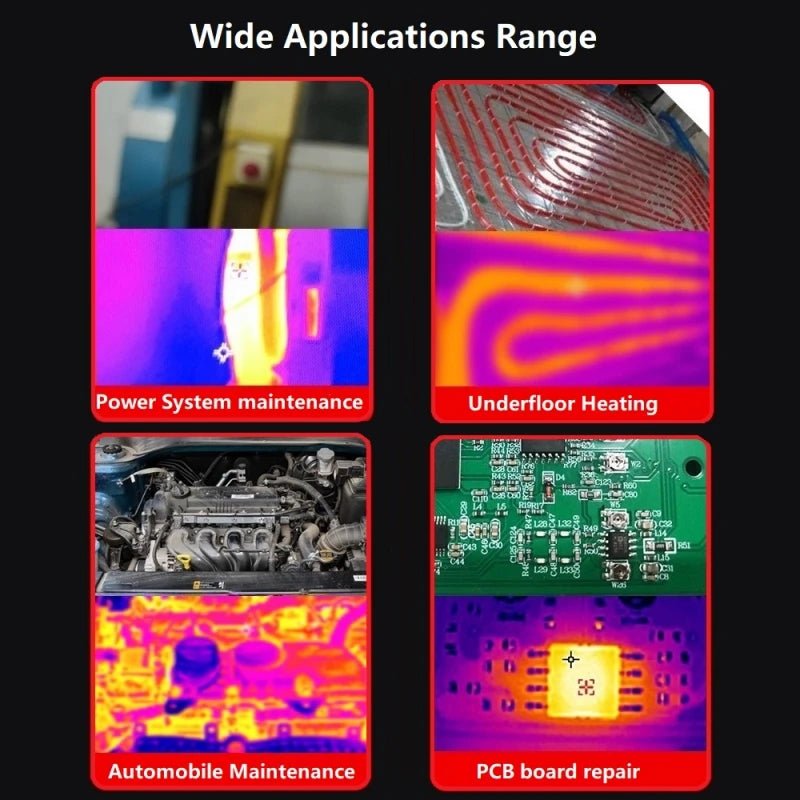

A: Absolutely! It’s great for detecting insulation leaks, HVAC inefficiencies, underfloor heating issues, and even finding pets or pests in the dark.

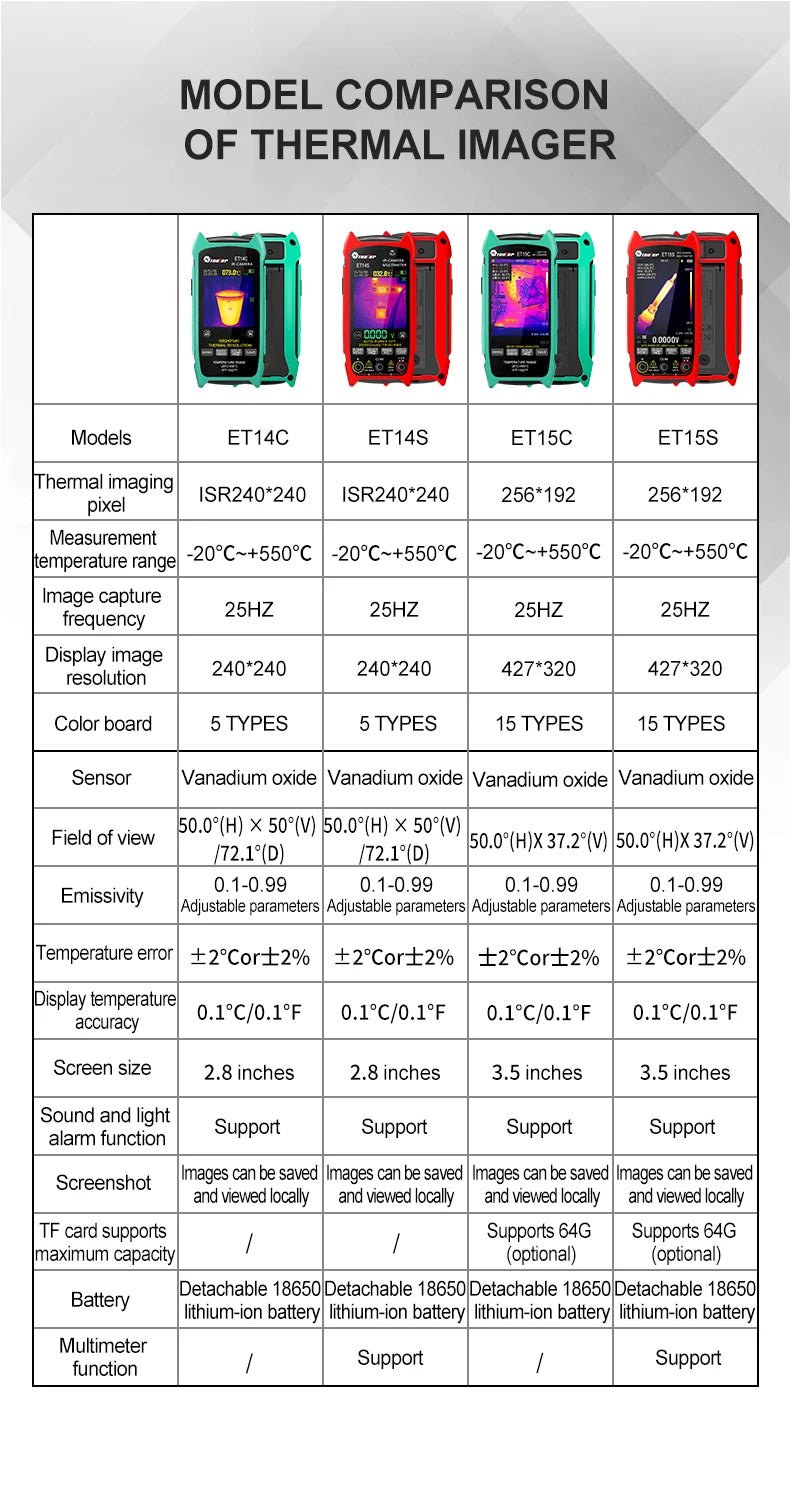

Specifications:

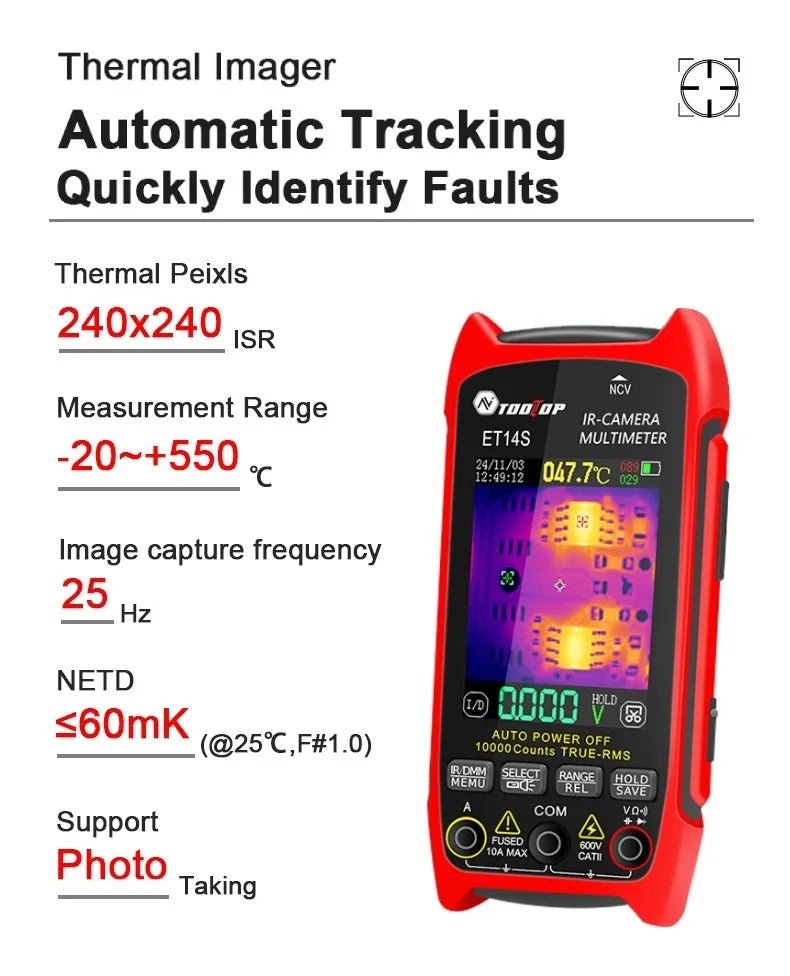

Thermal Imaging Parameters
- Image capture frequency: 25Hz
- Thermal imaging pixels: ISR 240x240
- Field of View: 50.0°(H) × 50°(V) / 72.1°(D)
- Temperature range: -20℃ ~ +550℃

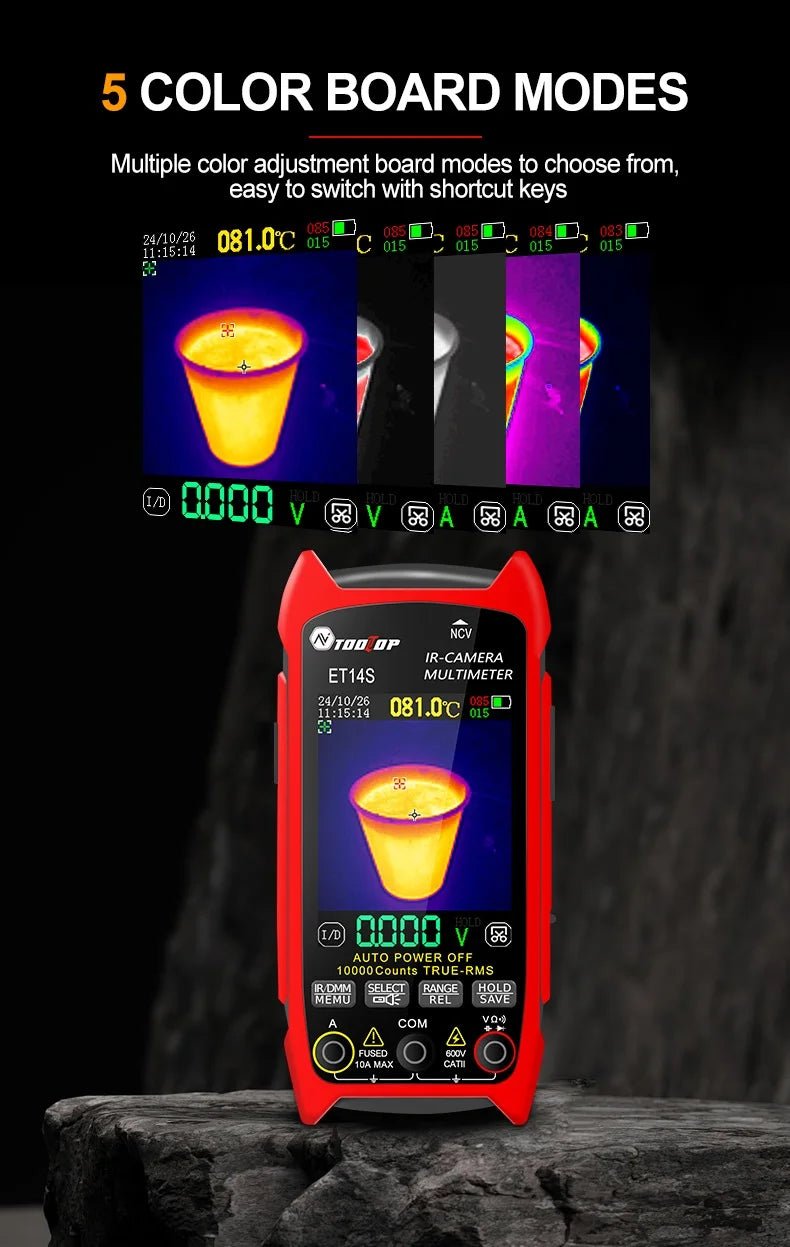

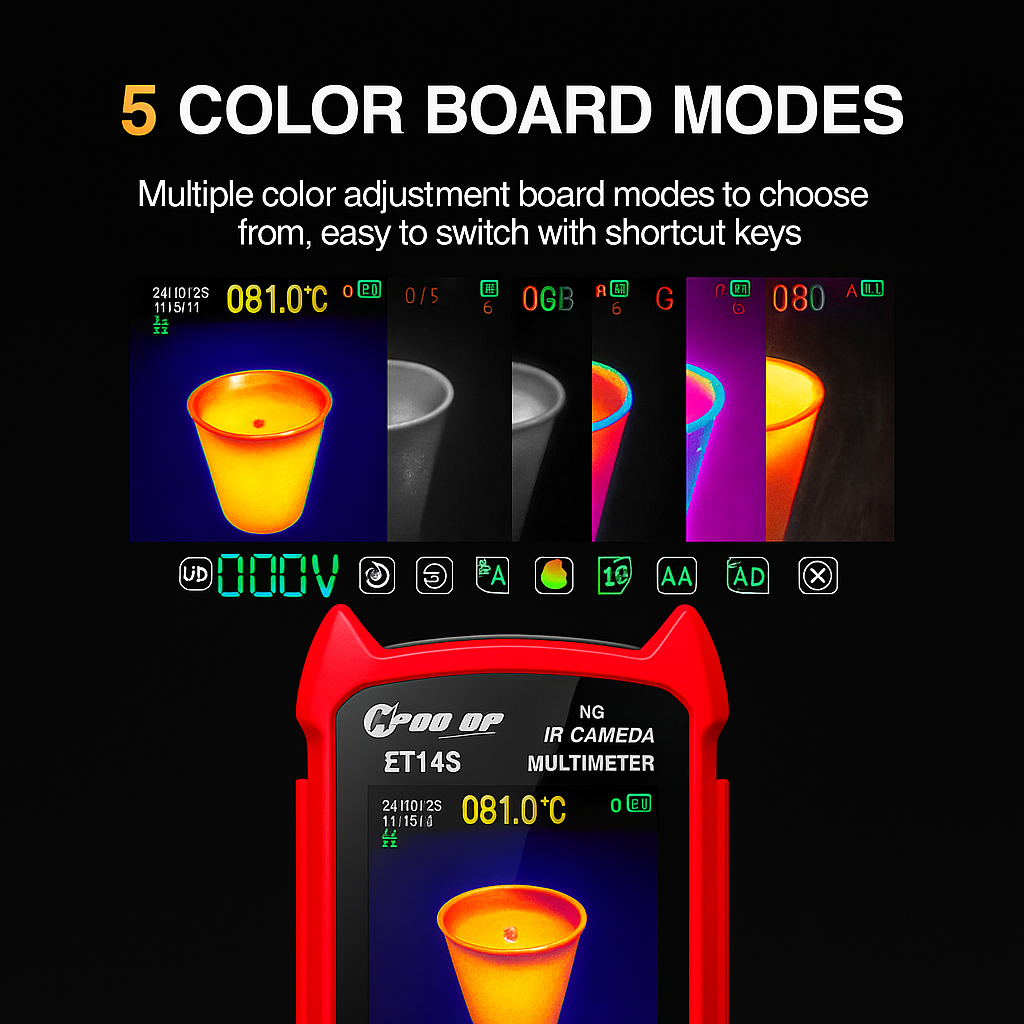

- Color palettes: Iron Red, Rainbow, Fusion, White Heat, Red Heat
- Accuracy: ±2℃ or ±2%
- Macro Lens: Optional, with a working distance of about 2.5cm
- Multimeter Parameters

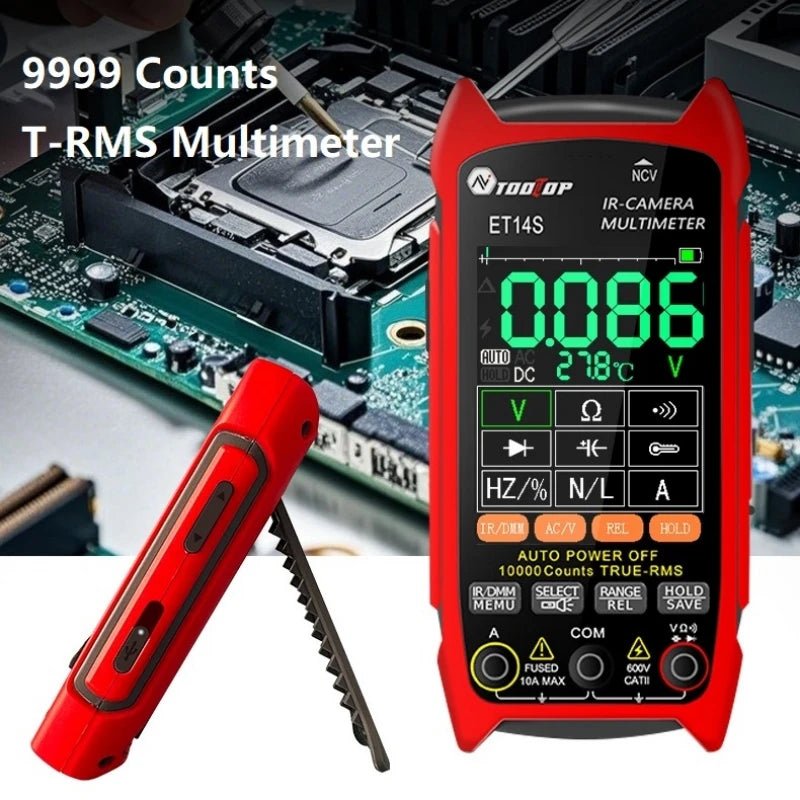

- Display word count: 9999 counts, Updates 3/sec
- Maximum DC input voltage: 1000V
- Maximum AC input voltage: 750V
- Maximum current measurement: 10A
- Resistance measurement: Up to 99.99MΩ
- Capacitance measurement: Up to 99.99mF
- Duty cycle test range: 0.1% ~ 99.9%
- Diode test range: 0V ~ 3V
- Continuity test: 999.99Ω
Additional Details
- Display type: 2.8-inch, 240 × 320 resolution
- USB interface: Type-C USB
- Storage capacity: 7.5MB, includes a 4G TF card and supports a maximum of 64G TF card (not included)
- Image storage format: BMP
- Battery type: Detachable 18650 Lithium-ion with innovative stand design for hands-free use
- Languages: Chinese, English, German
- Storage temperature: -20～60℃ (-4～140℉)
- Operating temperature: 0～50℃ (32～122℉)
- Operating humidity: ＜85% RH (non-condensing)
- Size: 134 mm × 64 mm × 28 mm
- Weight: Host weight: 180g (including battery), packaging weight: 380g

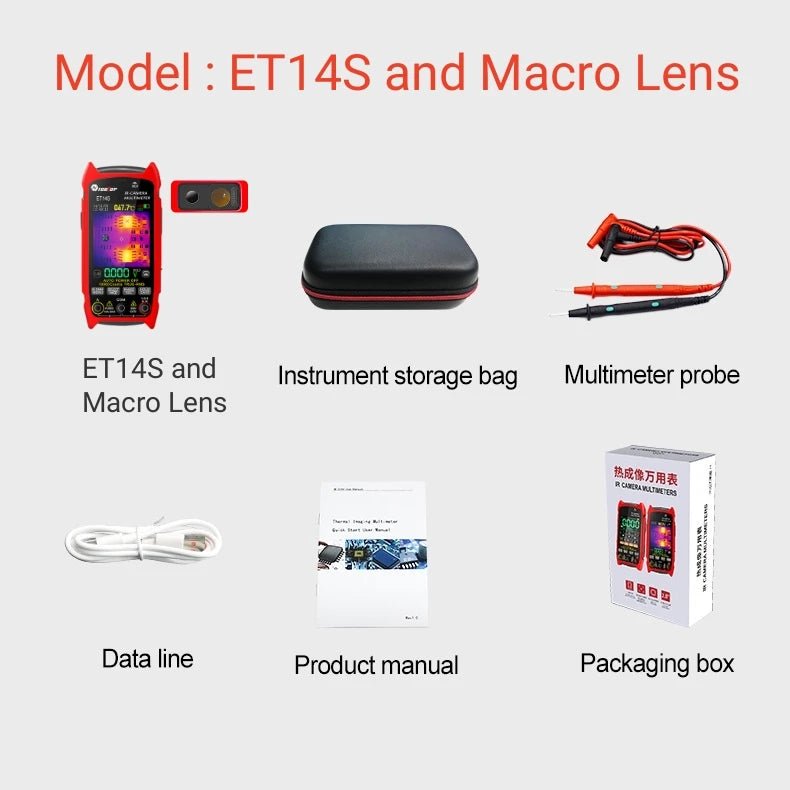

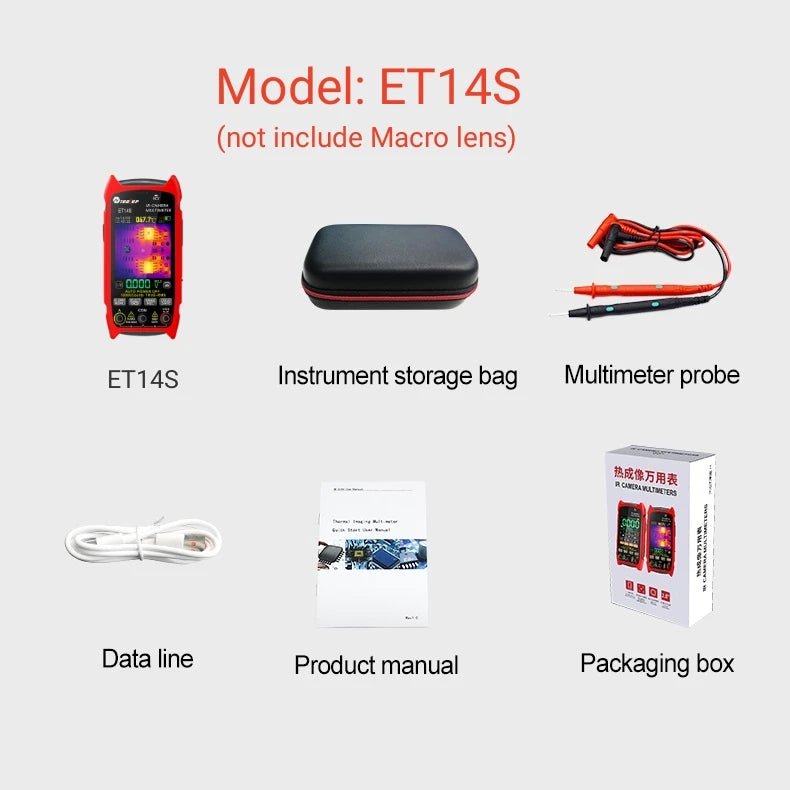

Package List:
- 1 x TOD 10P™ S14 Thermal Camera Multimeter
- 1 x USB Cable
- 1 x Multimeter Probe
- 1 x English User Manual
- 1 x Storage Bag
- 1 x Macro Lens (optional)
Conclusion:
The TOD 10P™ S14 isn't just a multimeter; it's an investment in your safety, efficiency, and expertise. Whether you’re a professional troubleshooting live electrical panels or a DIY enthusiast wanting pro-level diagnostic power, this tool saves time, prevents costly mistakes, and keeps you safe.
Don’t just take measurements—SEE what’s wrong before it becomes a problem. Order your TOD 10P™ S14 today!
