SPECIFICATIONS
Brand Name: TOOLTOP
Hign-concerned Chemical: None
Origin: Mainland China
Screen: 3.5-inches
Thermal imaging pixels: 256x192
Image capture frequency: 25Hz
Temperature range: -20℃ ~ +550℃
Gain mode: Auto Gain
Color palette: 15 kinds
Accuracy: ±2℃or±2%
Measurement resolution: 0.1℃/0.1℉
Multimeter Display: 19999 counts, Updates 3/sec
DC maximum input voltage: 1000V
AC maximum input voltage: 750V
Maximum current measurement: 10A
The maximum resistance: 99.99MΩ
The maximum capacitance: 199.99mF
Duty cycle test range: 0.1% ~ 99.9%
Diode test range: 0V ~ 3V
Continuity test: 199.99Ω
USB interface: Type-C USB
Battery Type: Detachable 18650 Lithium-ion battery
Note:
1.In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated about every 10 seconds to ensure more accurate measurements. This is a thermal imaging detector undergoing calibration work, which usually experiences a lag of about 1-3 seconds. This is a normal phenomenon, so please don't worry.
2.PC Software Download: http://doctuchuang.eirbio.cn/FR02E_EN/IR-DMM.zip
3.For PCB circuit board inspection, it is recommended to buy the version containing a macro lens. Macro lenses are only suitable for close-up observation.In other situations, please remove the lens; otherwise, the images will become blurry.

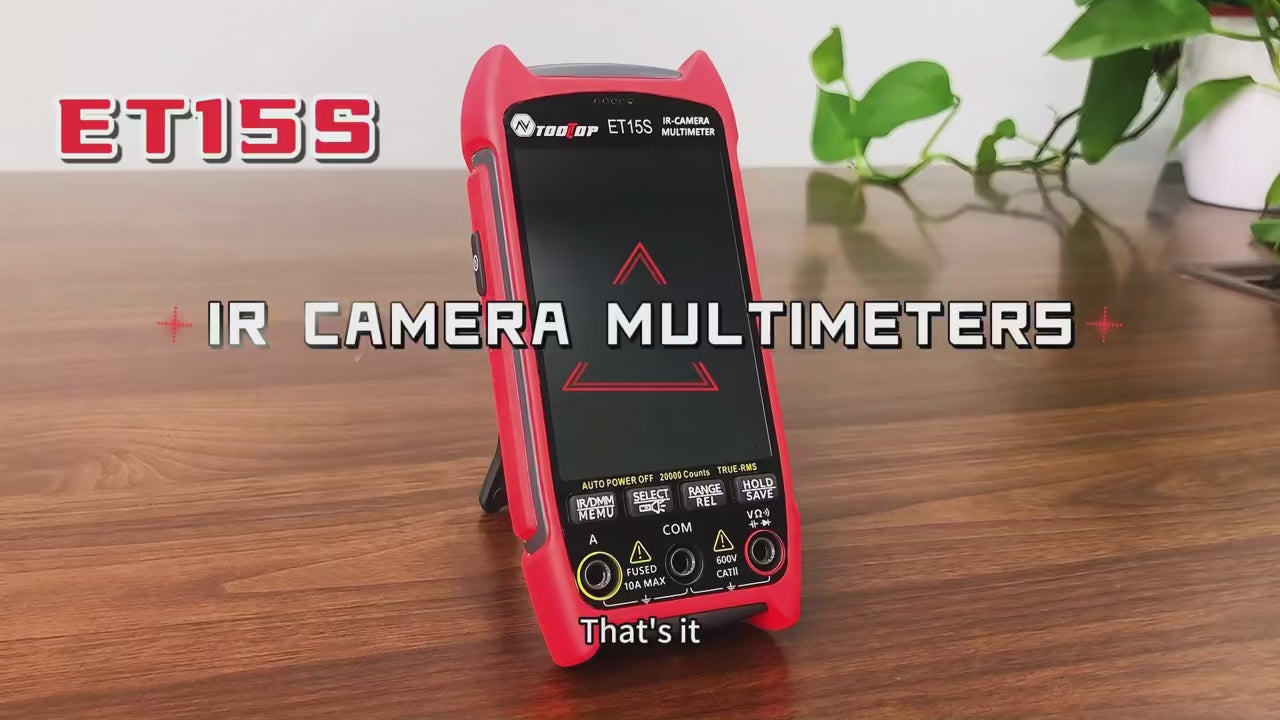

3 in 1
256 * 192 high-resolution thermal imaging+19999 high-precision multimeter+PCBA detector (requires macro lens) .
Covering the fields of thermal imaging, multimeter repair, PCB board mobile phone repair, all in one. It is an astonishingly powerful tool
Features:
Industrial-grade Thermal Camera
- 256x192 resolution 25Hz thermal imaging sensor
- In thermal imaging mode, multimeter can also be used.
- suitable for: underfloor heating leaks, HVAC maintenance, power system inspections, electronic repairs, and industrial inspect.
High-Precision Multimeter with 19,999 Counts
- manual and automatic range options
- analog needle display
- Maximum input DC voltage up to 1000V
voltage, current, resistance, capacitance, diode, frequency, NCV temperature measurements
Clear Display with Rich Color Options
- 3.5 inches large IPS screen with a resolution of 320x480
- 15 selectable color palettes, easily switching by long pressing the side button
Waveform Visualization
The multimeter measurement results can be visualized as waveform graphs, clearly understand data trends and simplify fault diagnosis.
Optional Macro Lens
captures small details as clear as 1mm x 1mm, ideal for smartphone repairs and PCB mainboard inspections.
Available in 11 languages
Including Chinese, English, German, Russian, French, Spanish, Portuguese, Korean, Japanese, Italian, and Polish, catering to global users.
Strong Battery Life and Convenient Charging
Powered by a detachable 18650 lithium battery with a runtime of up to 8 hours, reliable USB charging.
PC Software Support
Can transfer and analysis the multimeter data chart and thermal image
Specifications:
Thermal imaging parameters
Sensor: Vanadium oxide (VOx)
Image capture frequency:25Hz
Thermal imaging pixels:256x192
Display image resolution:427 x 320
Field of View (FOV):50.0°(H) × 37.2°(V)
Emissivity:0.1 – 0.99 adjustable,(0.95 by default)
Temperature range:-20℃ ~ +550℃
Gain mode: Auto Gain
Color palette: White Heat, Black Heat, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Dark Brown, Color 1, Color 2, Ice Fire, Rain, Green Heat, Red Heat, Deep Blue
Accuracy:±2℃or±2%
Measurement resolution:0.1℃/0.1℉
Macro Lens: Optional, no need to install, move the macro lens left and right during use.
Macro lens working distance: about 5cm, (please use normal thermal imaging when the distance exceeds this, otherwise the image will become blurred)
Multimeter parameters
Display:19999 counts, Updates 3/sec
DC maximum input voltage:1000V
AC maximum input voltage:750V
Maximum current measurement:10A
The maximum resistance:99.99MΩ
The maximum capacitance:199.99mF
Duty cycle test range:0.1% ~ 99.9%
Diode test range:0V ~ 3V
Continuity test:199.99Ω
Other parameters of the equipment
Display type:3.5-inch 320 * 480 resolution
USB interface: Type-C USB
Storage capacity: includes a 4G TF card and supports a maximum of 64G TF card (not included).
Battery Type: Detachable 18650 Lithium-ion battery
Storage temperature:-20～60℃（-4～140℉）
Operating temperature:0～50℃（32～122℉）
Operating Humidity:＜85%RH （ non-condensing ）
Size: 134 mm * 64mm * 28 mm
Weight: Host weight: 198g (including battery), packaging weight: 390g
Package List:
1 x Thermal Camera Multimeter
1 x USB Cable
1 x English Manual
1 x storage bag
1 x multimeter probe
1 x Macro Lens (for optional)
